Neural network forecasts of the tropical Pacific sea surface temperatures

Aiming Wu, William W. Hsieh and Benyang Tang

A neural network (NN) model had been used by our group to predict the sea surface temperature anomalies (SSTA) in the Nino3.4 region in the equatorial Pacific (Tang et al, 2000). The NN model has been extended to forecast the SSTA over the entire tropical Pacific, and in the latest version 3.5 (introduced in Mar. 2010), the model used is a Bayesian NN (Wu et al. 2006). Click here to see details about this model.

Using sea level pressure and sea surface temperature data up to the end of July 2012, forecasts were made with the NN model. Ensemble-averaged forecasts for the SSTA in the Nino3.4 region at various lead times are shown in Fig.1, and the forecasted SSTA fields over the tropical Pacific are displayed in Fig.2, showing the eastern equatorial Pacific to be developing El Niño warming in the next few months.

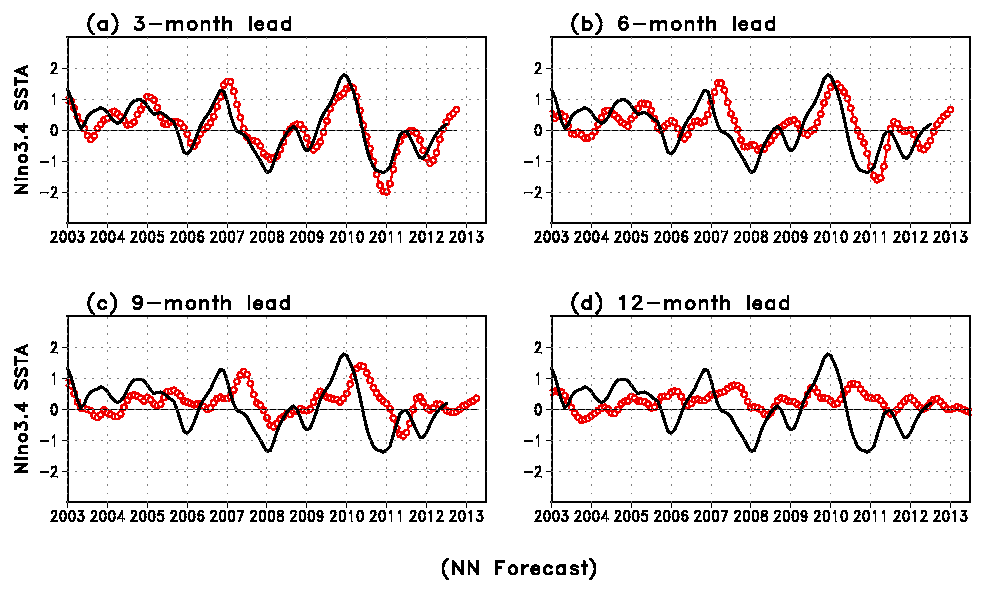

Figure 1. The SSTA (in degree Celsius) in the Nino3.4 area (170ºW-120ºW, 5ºS-5ºN) predicted by the ensemble-averaged nonlinear model at 3, 6, 9 and 12 months of lead time (circles), with observations denoted by the solid line. Tick marks along the abscissa indicate the January of the given years. (The pdf file of Fig.1 is also available).

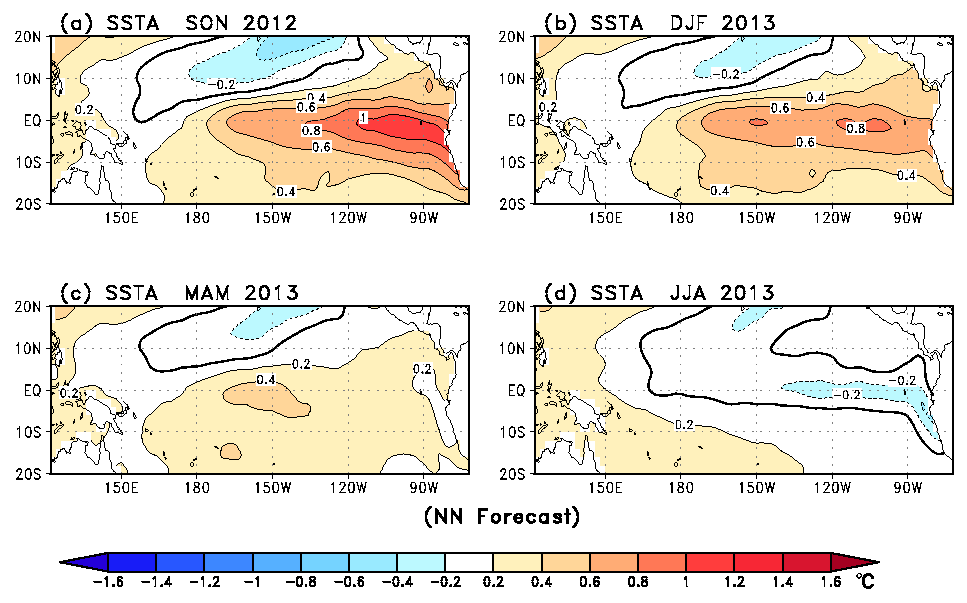

Figure 2. SSTA (in ºC) predicted by the ensemble-averaged nonlinear model for the four consecutive seasons starting with SON (September-November, 2012). The zero contour is shown as a thick black curve. (The pdf file of Fig.2 is also available).

Data in tabular format for the Nino3.4 SSTA predicted for the next four seasons:
SON 2012 0.66 ºC
DJF 2012-13 0.66 ºC
MAM 2013 0.35 ºC
JJA 2013 -0.09 ºC


Reference
Tang, B., W.W. Hsieh, A.H. Monahan and F.T. Tangang, 2000. Skill comparisons between neural networks and canonical correlation analysis in predicting the equatorial Pacific sea surface temperatures. J.Climate, 13: 287-293.

Wu, A., W.W. Hsieh and B. Tang, 2006. Neural network forecasts of the tropical Pacific sea surface temperatures. Neural Networks. 19: 145-154. doi:10.1016/j.neunet.2006.01.004. (preprint in PDF).
