Neural network forecasts of the tropical Pacific sea surface temperatures

Aiming Wu, William W. Hsieh and Benyang Tang

A neural network (NN) model had been used by our group to predict the sea surface temperature anomalies (SSTA) in the Nino3.4 region in the equatorial Pacific (Tang et al, 2000). The NN model has been extended to forecast the SSTA over the entire tropical Pacific, and in the latest version 3.5 (introduced in Mar. 2010), the model used is a Bayesian NN (Wu et al. 2006). Click here to see details about this model.

Using sea level pressure and sea surface temperature data up to the end of June 2013, forecasts were made with the NN model. Ensemble-averaged forecasts for the SSTA in the Nino3.4 region at various lead times are shown in Fig.1, and the forecasted SSTA fields over the tropical Pacific are displayed in Fig.2, showing the slightly cool conditions in the equatorial Pacific disappearing by early 2014.

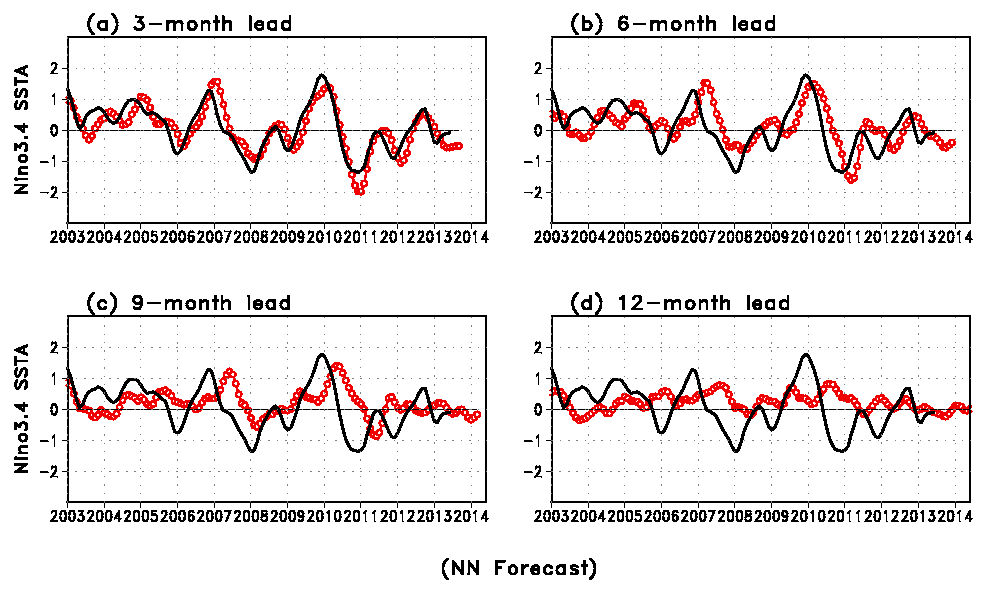

Figure 1. The SSTA (in degree Celsius) in the Nino3.4 area (170ºW-120ºW, 5ºS-5ºN) predicted by the ensemble-averaged nonlinear model at 3, 6, 9 and 12 months of lead time (circles), with observations denoted by the solid line. Tick marks along the abscissa indicate the January of the given years. (The observed Nino3.4 SSTA was computed from the ERSST data, with the mean defined over 1950-2009.) (The pdf file of Fig.1 is also available).

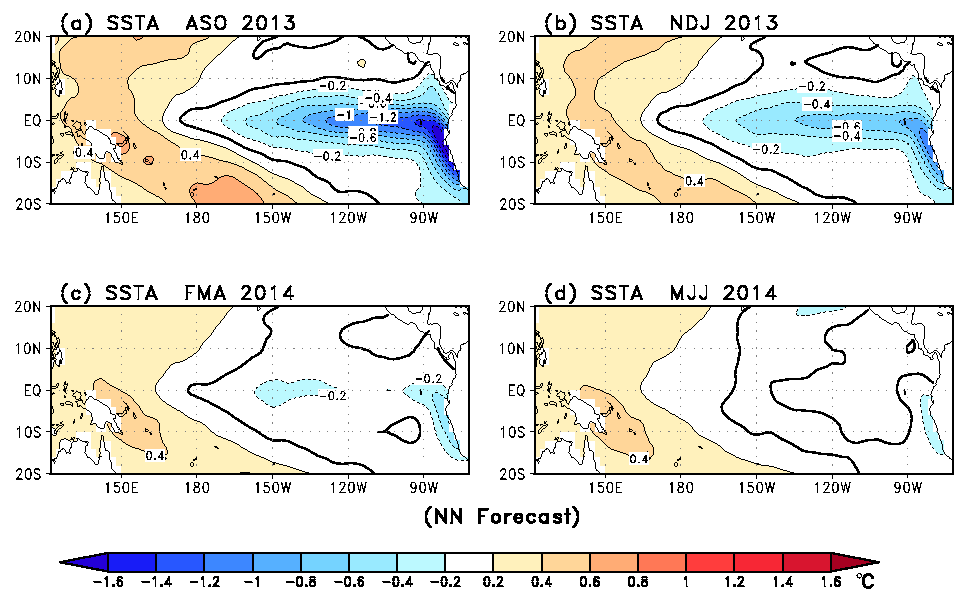

Figure 2. SSTA (in ºC) predicted by the ensemble-averaged nonlinear model for the four consecutive seasons starting with ASO (August-October 2013). The zero contour is shown as a thick black curve. (The pdf file of Fig.2 is also available).

Data in tabular format for the Nino3.4 SSTA predicted for the next four seasons:
ASO 2013 -0.51 ºC
NDJ 2013-14 -0.40 ºC
FMA 2014 -0.16 ºC
MJJ 2014 0.01 ºC


Reference
Tang, B., W.W. Hsieh, A.H. Monahan and F.T. Tangang, 2000. Skill comparisons between neural networks and canonical correlation analysis in predicting the equatorial Pacific sea surface temperatures. J.Climate, 13: 287-293.

Wu, A., W.W. Hsieh and B. Tang, 2006. Neural network forecasts of the tropical Pacific sea surface temperatures. Neural Networks. 19: 145-154. doi:10.1016/j.neunet.2006.01.004. (preprint in PDF).
